Jewellery Laser Soldering Machine

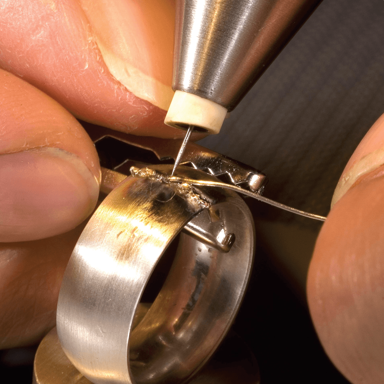

Paratech Industries manufactures Jewellery Laser Soldering Machines in Surat, Gujarat, India, for the precision joining and repair of delicate jewellery components. The focused laser beam applies controlled heat to a targeted area, enabling accurate soldering with minimal impact on nearby surfaces, gemstones, and intricate designs.

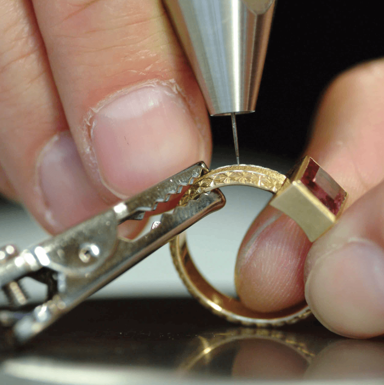

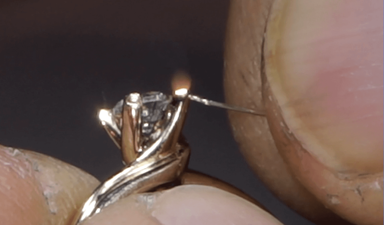

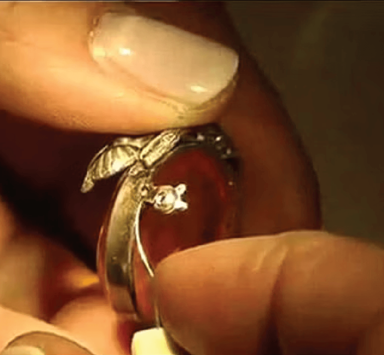

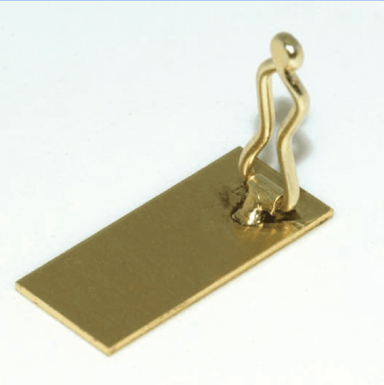

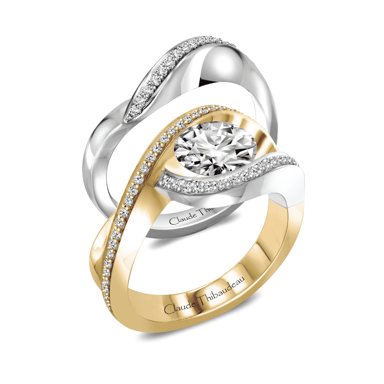

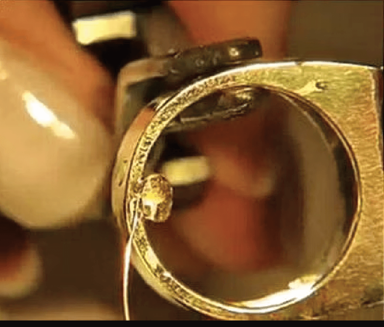

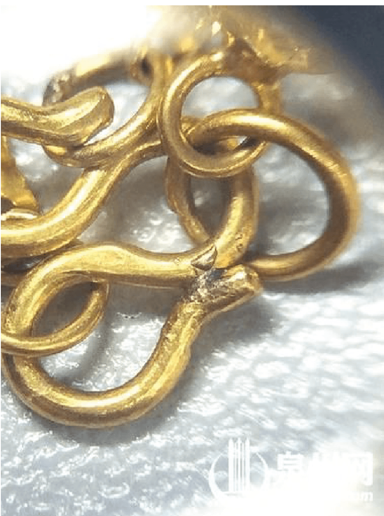

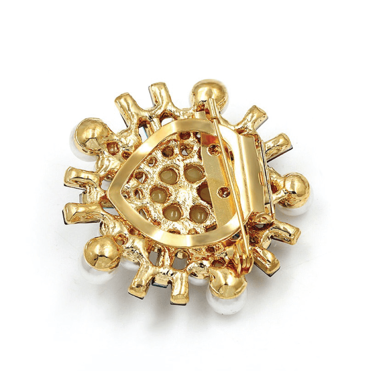

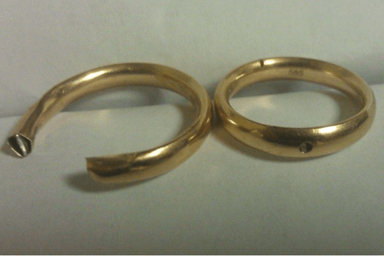

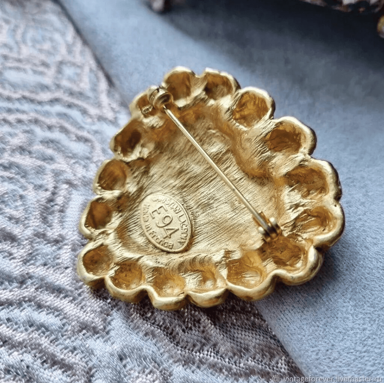

The machine is suitable for repairing rings, chains, earrings, bracelets, pendants, clasps, and prongs made from gold, silver, platinum, and other compatible metals. It delivers strong joints, minimal distortion, clean finishing, and improved productivity. Paratech Industries also provides technical guidance, installation, training, and dependable after-sales support across India.
Specification
| Model Name | Jumbo |
| Output Power | 200w |
| Single-Pulse Energy | 110 J |
| Machine Design Type | Desktop / Vertical |
| Laser Source | Nd:Yag |
| Laser Wavelength | 1064 Nm |
| Pump Lamp | Pulsed Xenon Lamp |
| Laser Source | 0.1-15 Ms Adjustable |
| Pulse Repeated Frequency | 1-20 Hz Adjustable |
| Welding Spot Diameter | 0.1-3 Mm |
| Observing System | Microscope / Ccd-Based On Requirement |
| Cooling System | Water Chiller |
| Power Supply | Single Phase Ac 220v ±10%, 50hz / 60hz, 4 Kw |
| Running Environment | Temperature 5°C-28°C, Humidity 5%-70% |
