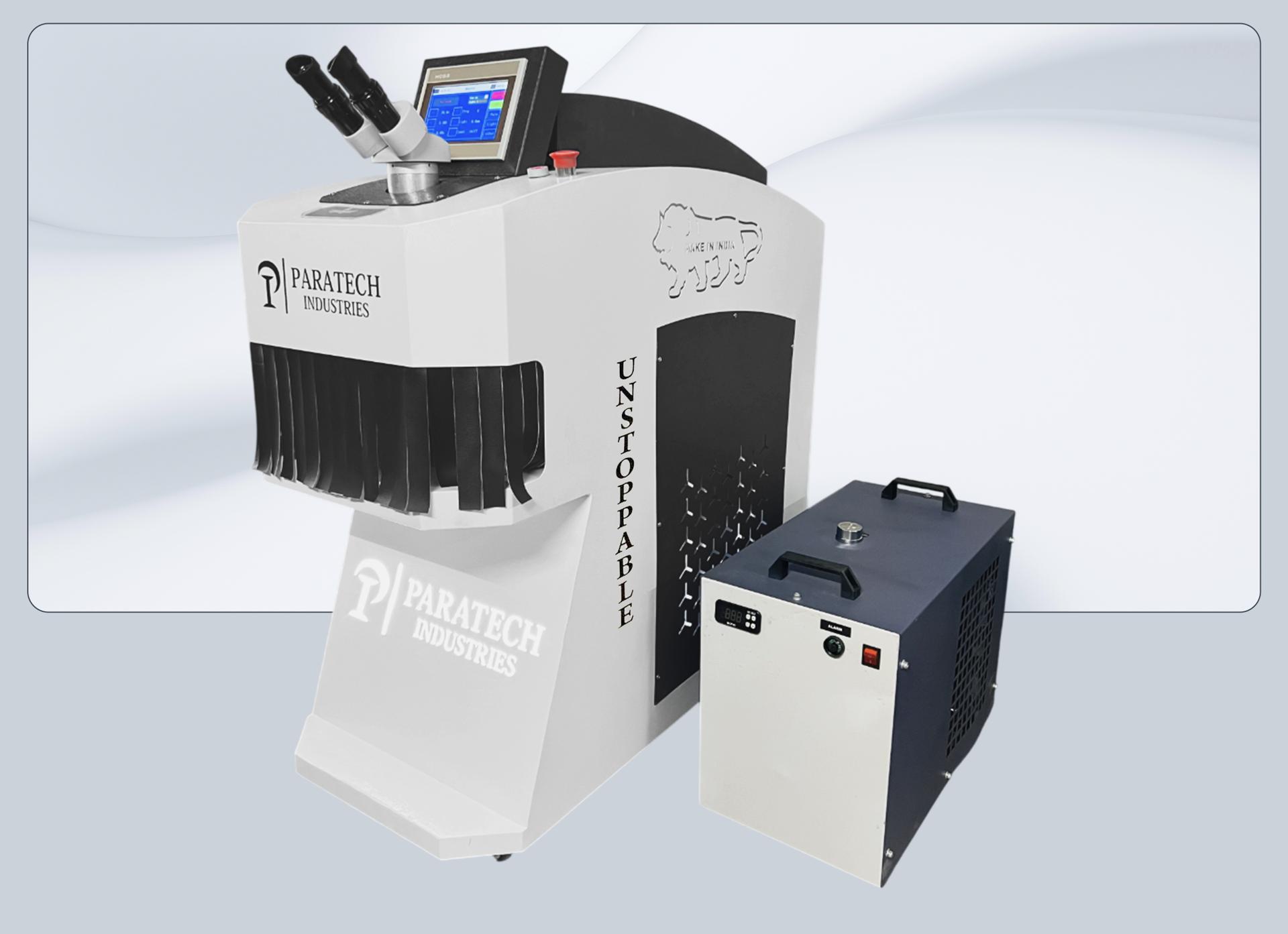

Jewellery Soldering Machine
Specification
| Model Name | Jumbo |
| Output Power | 200w |
| Single-Pulse Energy | 110 J |
| Machine Design Type | Desktop / Vertical |
| Laser Source | Nd:Yag |
| Laser Wavelength | 1064 Nm |
| Pump Lamp | Pulsed Xenon Lamp |
| Laser Source | 0.1-15 Ms Adjustable |
| Pulse Repeated Frequency | 1-20 Hz Adjustable |
| Welding Spot Diameter | 0.1-3 Mm |
| Observing System | Microscope / Ccd-Based On Requirement |
| Cooling System | Water Chiller |
| Power Supply | Single Phase Ac 220v ±10%, 50hz / 60hz, 4 Kw |
| Running Environment | Temperature 5°C-28°C, Humidity 5%-70% |
